Going Green

Discussion in 'The Tech Shop' started by RoadTime, Feb 24, 2017.

  1. RoadTime
    Paranoid

    RoadTime Veteran Expediter Owner/Operator

    Joined:
    Jun 30, 2008
    Messages:
    5,010
    Trophy Points:
    905
    Ratings:
    +7,943 / 10 / -0
    Carrier:
    Load One
    Vehicle:
    Sprinter
    I'm no tree hugger, but I do like having enough power to run all my comfort gadgets in my Sprinter without having to use the generator and running down my auxiliary batteries. I was already into using anything solar. Previously utilizing solar rechargeable lights, glow in the dark pads, large jump box for charging things. But eventual, power is depleted.

    So with my progression, I decided it was time to make a bigger jump to a solar panel to help keep my two auxiliary batteries charged.

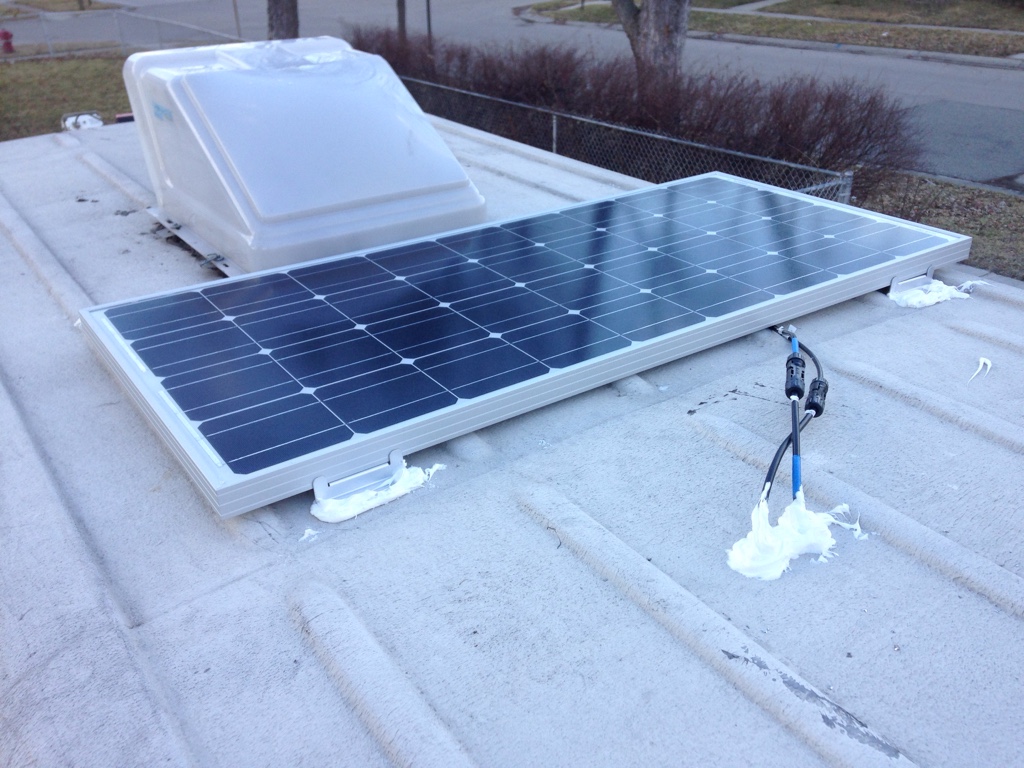

    The box unveiling...

    [​IMG]

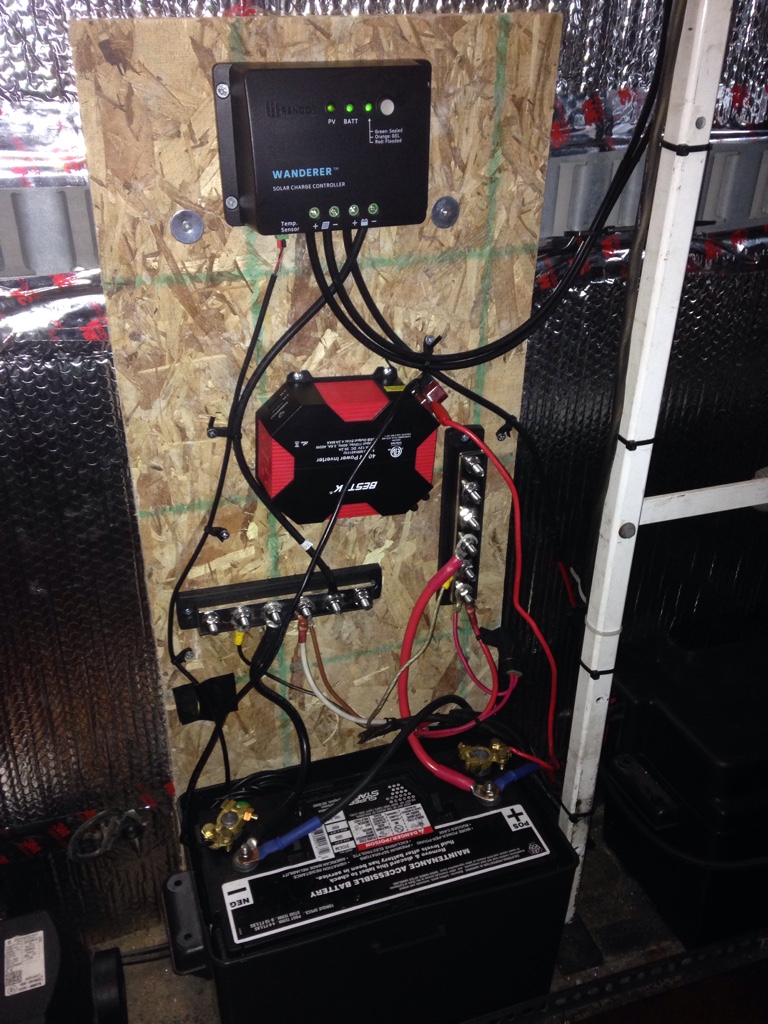

    And the final install...

    [​IMG]

    Already planning on adding a 2nd panel if needed

    Special thanks to Turtle for all his help and guidance, as I am very electrically challenged


    Sent from my iPhone using EO Forums

    • Like Like x 6
    • Winner Winner x 2
  2. Treadmill
    Caffeine Fix

    Treadmill Veteran Expediter Owner/Operator

    Joined:
    Jan 1, 2008
    Messages:
    2,372
    Trophy Points:
    430
    Ratings:
    +3,417 / 8 / -1
    Carrier:
    Load One
    Vehicle:
    2017 Sprinter
    How much for the solar panel and how much for the install?

    • OntarioVanMan
      Thinking

      OntarioVanMan Retired Expediter Owner/Operator

      Joined:
      Feb 12, 2003
      Messages:
      45,251
      Trophy Points:
      1,205
      Ratings:
      +30,896 / 25 / -2
      Carrier:
      Crossroads..now retired
      Vehicle:
      Sprinter
      or you could have just run more loads to keep charging....LOL

      what do you have that uses that much power? I have 2 full sized AGM batteries and have sufficient for days

      Last edited: Feb 24, 2017
      • Like Like x 1
    • Turtle
      Busy

      Turtle Administrator Staff Member Owner/Operator

      Joined:
      Apr 5, 2006
      Messages:
      24,659
      Trophy Points:
      1,285
      Ratings:
      +12,832 / 12 / -2
      Carrier:
      Load One
      Vehicle:
      2005 Sprinter
      You should post the pictures of the battery and charge controller setup. :)

      • Like Like x 2
    • RoadTime
      Paranoid

      RoadTime Veteran Expediter Owner/Operator

      Joined:
      Jun 30, 2008
      Messages:
      5,010
      Trophy Points:
      905
      Ratings:
      +7,943 / 10 / -0
      Carrier:
      Load One
      Vehicle:
      Sprinter
      I went with this starter kit. I did the install myself.

      Amazon.com : Renogy 100 Watts 12 Volts Monocrystalline Solar Starter Kit : Patio, Lawn & Garden

      Depending on how involved you want to get with the hook up, some extra cost for accessories. I needed to get my battery bank in better order anyways, so I did more then was necessary with the basic kit.

      [​IMG]

      Just got off the phone with tech support. I was a little concerned that since last night my bank is already fully charged on a cloudy rainy day at 14.5 volts. They said this was normal and will settle back down to 13.8 volts.

      [​IMG]

      Picture of the included solar control...

      [​IMG]


      Sent from my iPhone using EO Forums

      • Like Like x 4
    • Turtle
      Busy

      Turtle Administrator Staff Member Owner/Operator

      Joined:
      Apr 5, 2006
      Messages:
      24,659
      Trophy Points:
      1,285
      Ratings:
      +12,832 / 12 / -2
      Carrier:
      Load One
      Vehicle:
      2005 Sprinter
      Wait. What? Your solar panel came with a tennis shoe?

      • Like Like x 1
      • Funny Funny x 1
    • RoadTime
      Paranoid

      RoadTime Veteran Expediter Owner/Operator

      Joined:
      Jun 30, 2008
      Messages:
      5,010
      Trophy Points:
      905
      Ratings:
      +7,943 / 10 / -0
      Carrier:
      Load One
      Vehicle:
      Sprinter
      LOL! I did that so my sister could get perspective on the size :D

      P.S.- Size 14 wide ;)

    • Turtle
      Busy

      Turtle Administrator Staff Member Owner/Operator

      Joined:
      Apr 5, 2006
      Messages:
      24,659
      Trophy Points:
      1,285
      Ratings:
      +12,832 / 12 / -2
      Carrier:
      Load One
      Vehicle:
      2005 Sprinter
      You should have used a toddler's shoe. Freak her out. :D

      • Like Like x 1
      • Funny Funny x 1
    • OntarioVanMan
      Thinking

      OntarioVanMan Retired Expediter Owner/Operator

      Joined:
      Feb 12, 2003
      Messages:
      45,251
      Trophy Points:
      1,205
      Ratings:
      +30,896 / 25 / -2
      Carrier:
      Crossroads..now retired
      Vehicle:
      Sprinter
      but just 1....he is waiting for Scotty to beam it over....:p

    • Turtle
      Busy

      Turtle Administrator Staff Member Owner/Operator

      Joined:
      Apr 5, 2006
      Messages:
      24,659
      Trophy Points:
      1,285
      Ratings:
      +12,832 / 12 / -2
      Carrier:
      Load One
      Vehicle:
      2005 Sprinter
      The phrase "Beam me up, Scotty" has never been said in any of the Star Trek television shows or movies.

      Just thought you all would like to know that.

      • Like Like x 2
      • Informative Informative x 1
    • OntarioVanMan
      Thinking

      OntarioVanMan Retired Expediter Owner/Operator

      Joined:
      Feb 12, 2003
      Messages:
      45,251
      Trophy Points:
      1,205
      Ratings:
      +30,896 / 25 / -2
      Carrier:
      Crossroads..now retired
      Vehicle:
      Sprinter
      being a trekkie.....I knew that...:p

      • Like Like x 1
    • RoadTime
      Paranoid

      RoadTime Veteran Expediter Owner/Operator

      Joined:
      Jun 30, 2008
      Messages:
      5,010
      Trophy Points:
      905
      Ratings:
      +7,943 / 10 / -0
      Carrier:
      Load One
      Vehicle:
      Sprinter

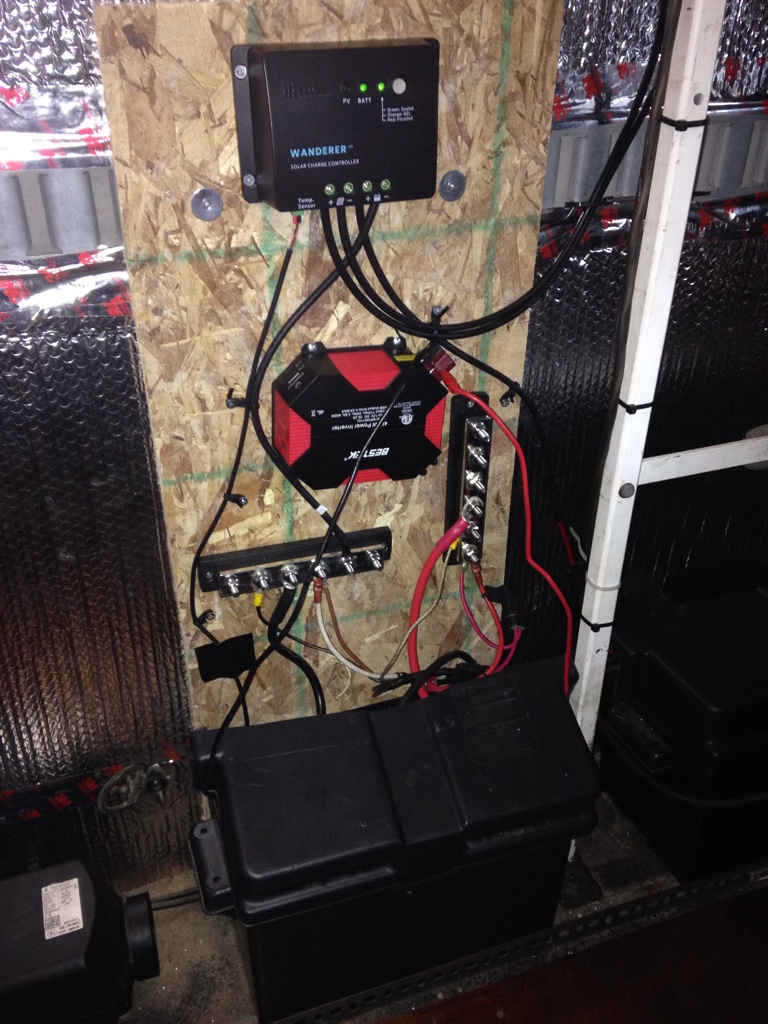

      Final control panel adjustments completed. Now, a little sun would be nice

      [​IMG]

      [​IMG]


      Sent from my iPhone using EO Forums

      • Like Like x 2
    • Moot
      Confused

      Moot Veteran Expediter Owner/Operator

      Joined:
      Dec 26, 2005
      Messages:
      10,647
      Trophy Points:
      1,005
      Ratings:
      +7,088 / 5 / -1
      Carrier:
      Panther
      Vehicle:
      Transit 350 Long/Tall Ecoblast
      When I was doing LTL P&D I would pick up at one of the Bemis plants in Minneapolis. After picking up I would call into dispatch and say: Bemis aboard. I believe you have picked up at the Bemis plant in Centerville, IA. Bemis aboard!

      • Funny Funny x 1
    • john618

      john618 Rookie Expediter Driver

      Joined:
      Feb 6, 2017
      Messages:
      11
      Trophy Points:
      15
      Ratings:
      +4 / 0 / -0
      nice setup. give it some sunshine to run it

    • RoadTime
      Paranoid

      RoadTime Veteran Expediter Owner/Operator

      Joined:
      Jun 30, 2008
      Messages:
      5,010
      Trophy Points:
      905
      Ratings:
      +7,943 / 10 / -0
      Carrier:
      Load One
      Vehicle:
      Sprinter
      No, your not seeing double. As I pretty much planned from the beginning, installed my 2nd solar panel today.

      [​IMG]

      It was so easy to install and hook up the 2nd panel this time around. Maybe 30 mins from box to completion.

      I've been pretty happy with the 1st solar panel, just wanted some more power

      [​IMG]


      Sent from my iPhone using EO Forums

      • Like Like x 4
    • RoadTime
      Paranoid

      RoadTime Veteran Expediter Owner/Operator

      Joined:
      Jun 30, 2008
      Messages:
      5,010
      Trophy Points:
      905
      Ratings:
      +7,943 / 10 / -0
      Carrier:
      Load One
      Vehicle:
      Sprinter

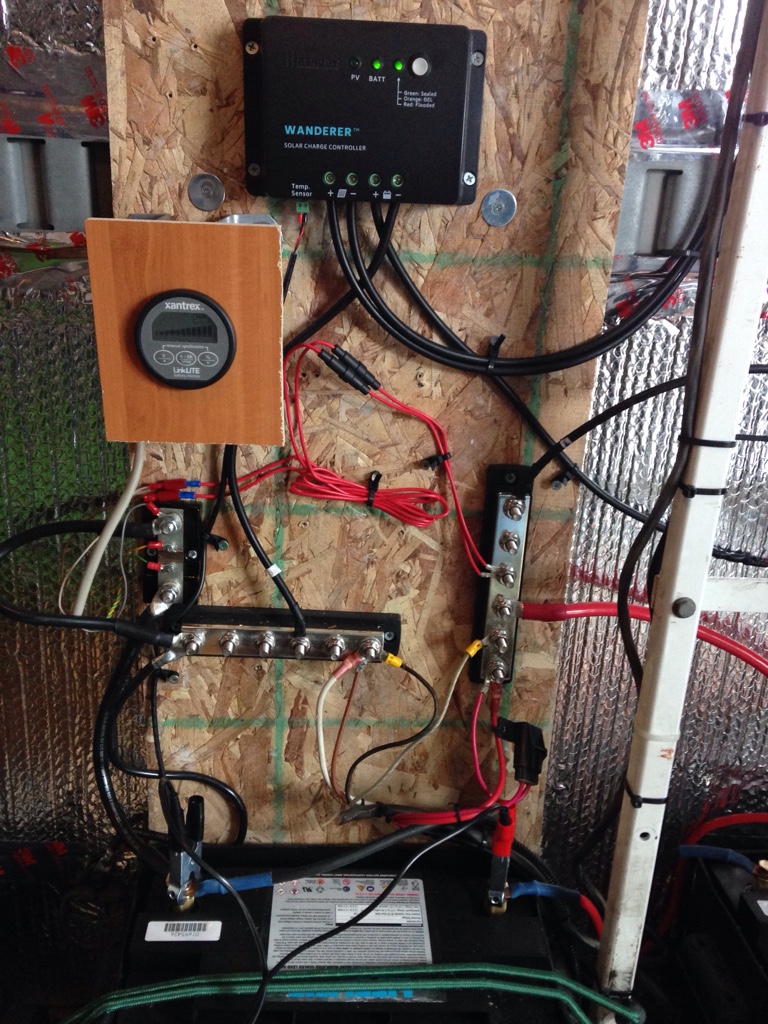

      Updated final completion of control panel.
      Removed 400 watt inverter, added Xantrex battery monitor (which I highly recommend).
      Replaced 1500 watt modified inverter (not shown) for 1500 watt pure wave inverter (major difference).

      [​IMG]

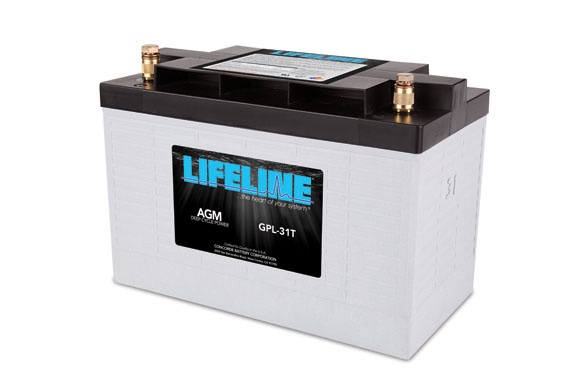

      Two new batteries added.

      [​IMG]

      Also, added a cube fridge which I love, good bye ice cooler


      Sent from my iPhone using EO Forums

      • Like Like x 3
      • Winner Winner x 1
    • brokcanadian
      Mellow

      brokcanadian Veteran Expediter Owner/Operator

      Joined:
      Aug 28, 2013
      Messages:
      1,949
      Trophy Points:
      280
      Ratings:
      +1,953 / 5 / -2
      Vehicle:
      2005 Dodge Sprinter 2500
      Why does no one like the Dometic 12v? Lasts for days on a battery...

      • Like Like x 1
    • RoadTime
      Paranoid

      RoadTime Veteran Expediter Owner/Operator

      Joined:
      Jun 30, 2008
      Messages:
      5,010
      Trophy Points:
      905
      Ratings:
      +7,943 / 10 / -0
      Carrier:
      Load One
      Vehicle:
      Sprinter
      I looked into those. For the size I would need at around $700 compared to $128, falls into the same category as why I never had a Yeti cooler ;)

      • Agree Agree x 1
    • brokcanadian
      Mellow

      brokcanadian Veteran Expediter Owner/Operator

      Joined:
      Aug 28, 2013
      Messages:
      1,949
      Trophy Points:
      280
      Ratings:
      +1,953 / 5 / -2
      Vehicle:
      2005 Dodge Sprinter 2500
      Pricey but worth it. I remember my walmart fridge going clank clank while driving, and running out of juice so my food went all slimy

      I've only got 2 105 amp marines tho

    • RoadTime
      Paranoid

      RoadTime Veteran Expediter Owner/Operator

      Joined:
      Jun 30, 2008
      Messages:
      5,010
      Trophy Points:
      905
      Ratings:
      +7,943 / 10 / -0
      Carrier:
      Load One
      Vehicle:
      Sprinter
      Transfer, Add-on, and Epic Fail?

      I started my transfer of my solar panels to my new van yesterday.

      I'm adding 2 more solar panels for a total of 4 this time. Several months back, I added 2 more 12 volt batteries to my battery bank for a total of 4 also.

      The 2 solar panel /4 battery bank set up was adequate, but still lacking at times. I figured going to 4 panels should be the sweet spot to meet my needs.

      The new 4 panel placement configuration needed to be set up different to avoid a lot of wire splicing (which I didn't want to get into).

      Drilling and prepping 34 holes felt like it took forever. Several times, I wished I would of went with some of the other installation options I was exploring. But I was in too deep to back out now. I was using a little different securement method this time, the process was more labor intensive then I planned. Once I got this done, it was time to start securing the panels to the roof.

      Then a horrifying moment occurred on my first panel, I could not get the screws to engage with the locking securement I was using.
      OMG, I was looking in panic at a Epic Fail :eek:

      Gathering my thoughts, I tried to figure out why this wasn't working. I found another screw that seemed to work but was too short.

      Came to the conclusion, that the nice older man at Home Depot may have recommended the wrong screw. It seemed to work at the time, but obviously something was not working now. Quickly packed up and headed to Menards.

      Found the correct sized screw that seemed to be engaging with the locking device like it should, and headed back home to try again.

      To my great relief, the screw engaged this time securing the panel to the roof.

      After 7 hours, with day light all but gone, and sore as hell :rolleyes: I got two panels in place and had to call it a day.

      Today should go much smoother, as most of the hard work has been done.

      Two down, two to go ;)


      • Like Like x 1
