Mechanical Question about throw out bearing eaton fuller 6 speed?

[jamom123]

Hello all, I have a question about how to grease the throw out bearing on a eaton fuller 6 speed transmission. It started making some squeaking noises, I can't find any type of grease fitting it seems the bearing is encased. I tried greasing the tranny shaft to no Aveil. Any help would be appreciated thanks.

Sent from my SM-N910V using EO Forums mobile app



[greasytshirt]

There should be a grease fitting at the bottom of the bearing.

If there isn't, I guess there's a possibility someone put it in upside down, although how they managed to do that evades me.

If it gets much worse, it's time to pull the tranny. If you go that far, you might as well replace the clutch.

Sent from my XT1585 using EO Forums mobile app



[BigStickJr]

Being a Freightliner I wonder if they may have switched to a sealed bearing.
Of course, that doesn’t change the diagnosis from Dr Greasey.



[jamom123]

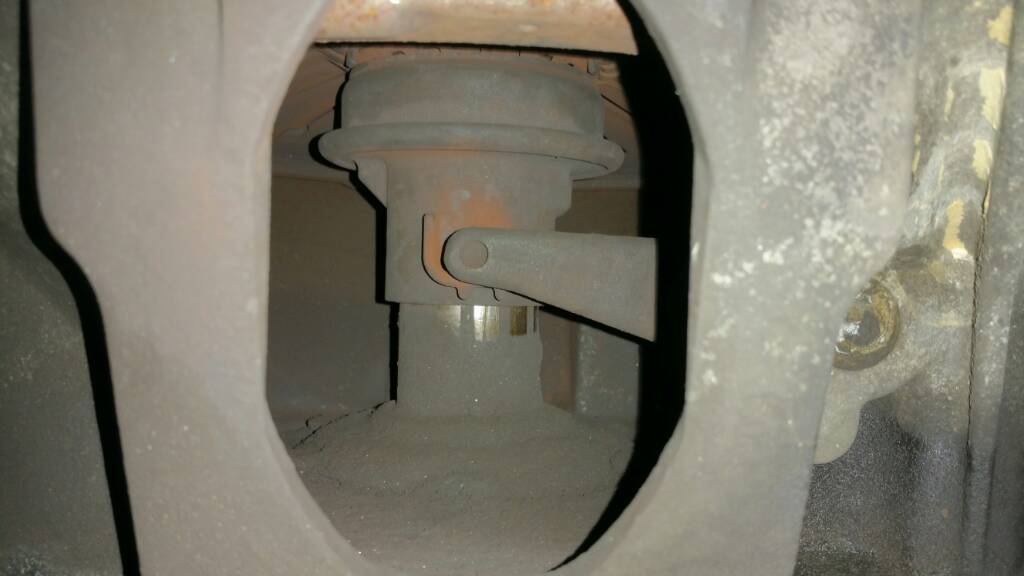

A few weeks ago I drove through some slushy snow and forced a decent amount of water in there. The noise went away for a while but it eventually came back with force. I will try to attach a photo of the bearing I Beleive it is a sealed bearing.

Sent from my SM-N910V using EO Forums mobile app



[jamom123]

Sent from my SM-N910V using EO Forums mobile app



[greasytshirt]

Looks like BigStickJr is right. There's no greasing that one.

Replace it before it grenades. How long until that happens? No one can say.

Sent from my XT1585 using EO Forums mobile app



[jamom123]

Thanks for all the help everyone. So according to what I'm hearing there's really nothing That can be done other than changing it correct?

Sent from my SM-N910V using EO Forums mobile app



[BigStickJr]

IF getting it wet would help, I’d say hire WOM to drive it.
Unfortunately, that won’t do it.
Schedule the replacement soon.



[jamom123]

So I take it when it gets wet and stops for a week or so it's just masking the problem?

Sent from my SM-N910V using EO Forums mobile app



[BigStickJr]

I don’t have a degree in greaseness, but I’d say yes.



[jamom123]

Have any of you ever changed this type bearing before?

Sent from my SM-P605V using EO Forums mobile app



[BigStickJr]

Probably have.
Driveshaft down.
Transmission down.
Slide off,pray, inspect shaft, reinstall.
Since trans is out, you might as well replace the clutch.
A good shop I’d think 7 or 8 hours.Including clutch replacement.



[jamom123]

Thanks. I may attempt on my own just have to buy a large transmission jack.

Sent from my SM-P605V using EO Forums mobile app



[BigStickJr]

Rent or borrow one.



[jamom123]

True. Thanks for the help.

Sent from my SM-P605V using EO Forums mobile app



[greasytshirt]

Thanks. I may attempt on my own just have to buy a large transmission jack.

Sent from my SM-P605V using EO Forums mobile app

You need a smooth, level concrete floor to do this on, or you'll be fighting the jack like crazy.



[jamom123]

Yes, thank you.

Sent from my SM-N910V using EO Forums mobile app



[greasytshirt]

Have you done something like this before? Do you have someone who can help you?



[jamom123]

I've personally never dropped a transmission. But I do have someone to help me.

Sent from my SM-N910V using EO Forums mobile app



[greasytshirt]

The very first step is to determine the spot where the engine usually stops. Because of compression, the engine generally stops in the same place each time. Start and stop it a few times. If the new clutch is manually adjustable, you want the adjuster to stop in that window so you don't have to try to bump the motor over a million times to get to it.

Sent from my XT1585 using EO Forums mobile app
